Como me han gustado siempre las tornamesas tangenciales y esta de Sansui luce muy diferente.
Acoustical Systems: Descomunal y refinada
the APOLYT
the APOLYT
Technical specifications:
- platter weight: 58 kg
- chassis weight: 188 kg
- 2 motors - motors weight 26 kg
- powersupply weight: 38 kg
- net weight: 388 kg
- shipping weight: 580 kg (delivery in 8 flight cases)
- dimensions (w x d x h): 108 cm x 69 cm x 128 cm
- wow & flutter: below 0.01% (W.R.M.S)
- speed: 33 1/3 rpm and 45 rpm - all speeds w/ precise adjustment option
- operation voltage: optional DC-operation and selectable 100 / 120 / 220 / 230 / 240 V - 50/60 Hz
- drive: unique balanced shaft transmission drive with dynamic torque management
- power consumption in operation: 20 to 180 Watt
Adjustments:
- user choice / selectable: 1, 2, 3, 4 or 5 arm bases
- adjustable - build-in - air flow and air pressure for optional air-bearing tonearm
- adjustable tuning resonance frequency
Features:
- automatic levelling
- optional 2 shelves incorporated for phono stage / line stage - full isolated within the air spring frame.
- platter based on bi-radial, full aero-static air-bearing - vertical and horizontal.
- complete plinth and optional integrated rack suspended on true air-spring-induction-field suspension with resonance frequency below 0.5 Hz.
- speed quartz controlled and user adjustable +/- 5%.
- balanced shaft transmission drive - mating belt and direct drive in an unique concept.
- center of moving mass resting in bearing plane.
- platter inertia 38x of Micro Seiki SX-8000 platter.
- compound platter featuring definite energy transfer and internal liquid dampening.
- center of platter mass identical with plane of bearing/rotation = perfect resting mass principle.
- compound arm bases with identical energy transfer concept as platter.
- super fast exchange of arm boards.
- no possible build-up of static energy during play.
- motor-drive powered by custom amplifier and optional pure DC-power supply.
(battery sourced with automatic recharging and automatic redundant AC-power supply)
Options:
- optional additional speeds: 16 2/3 rpm and 78 rpm
- optional wooden veneer or smoked glass side panels - detachable
- optional rack front cover choice of prime wood veneer or smoked glass
- acrylic dust cover
- optional 24kt plating or polished chrome finish on selected parts (frame, dome caps)
All technical details and aspects are subject to evolution and change without prior notice.
Certificated strictly limited edition.
Algunos de sus fonocaptores
Aries Cerat de Chipre, el high end existe en todos lados.
http://aries-cerat.eu/
Descomunales desarrollos.
DAC
Kassandra 2 SIG LE
* 24 R2R converters per channel, complimentary current output
(using the top grade AD1865N-K , 12 converters per bank, 24 per channel,48 in total)
* Eight discrete ultra-low-noise regulators
(for the 4 converter banks)
*Extensive local decoupling,using tuned LC filters, 76 in number
*Overengineered power supplies,power input filters
Descomunales desarrollos.
DAC
Kassandra 2 SIG LE
* 24 R2R converters per channel, complimentary current output
(using the top grade AD1865N-K , 12 converters per bank, 24 per channel,48 in total)
* Eight discrete ultra-low-noise regulators
(for the 4 converter banks)
*Extensive local decoupling,using tuned LC filters, 76 in number
*Overengineered power supplies,power input filters
Contendo Reference
Sistema mixto de bocinas
Collatio OTL

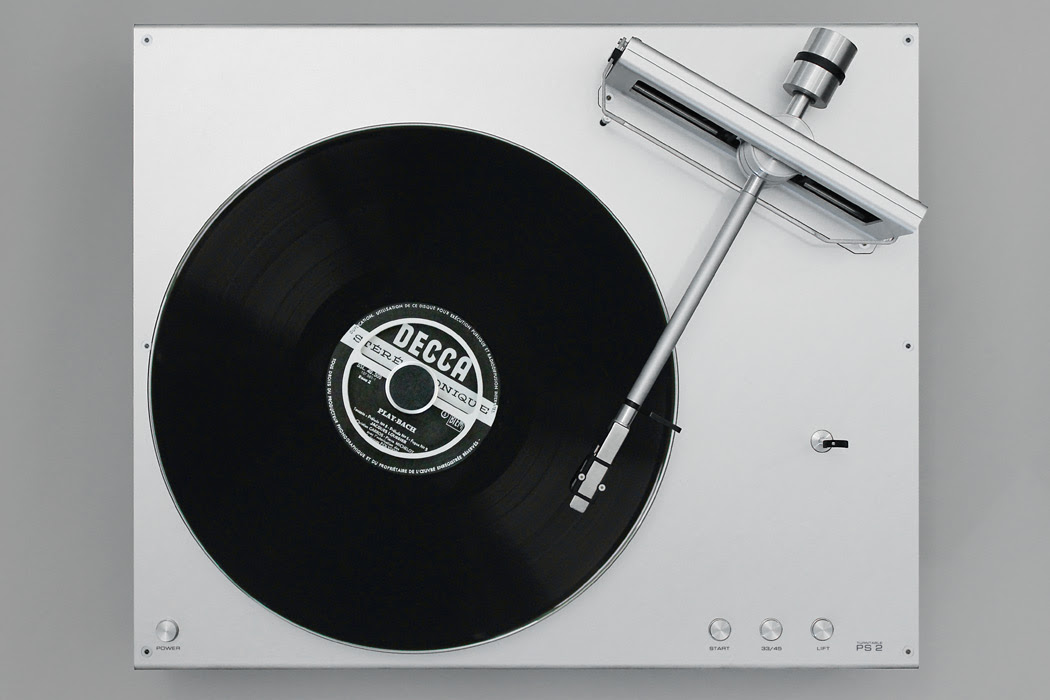

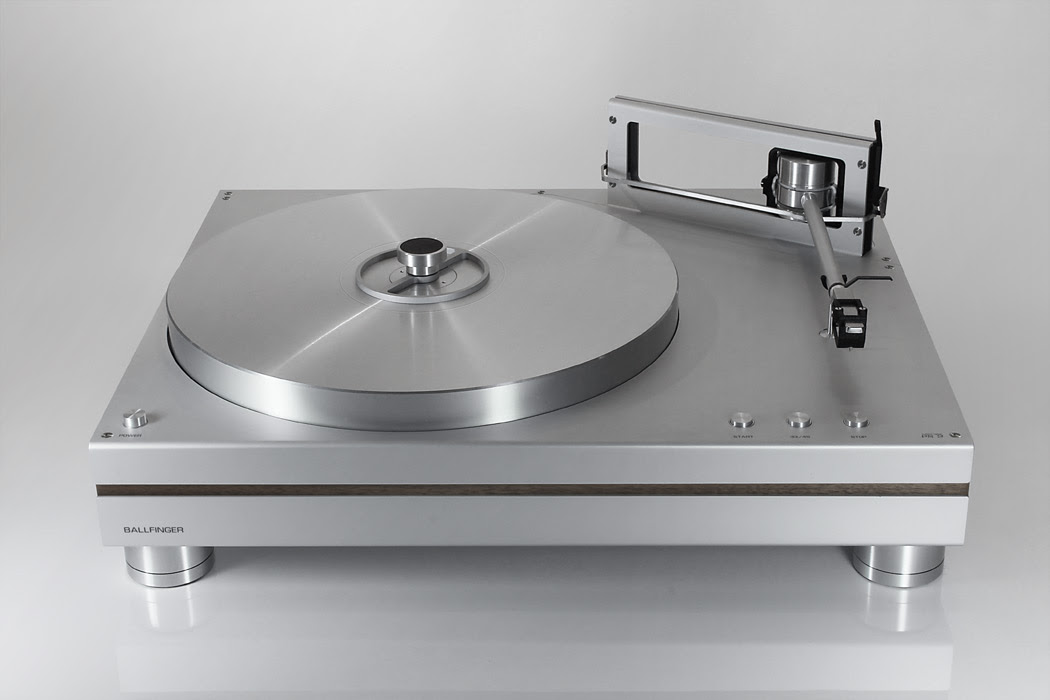

Cuando crees haber visto todo: Ballfinger Schallplattenspieler PS 2
Direkt angetriebener Schallplattenspieler mit aktivem Radialtonarm und Moving Coil System
http://www.ballfinger.de/turntable-ps-2
http://www.ballfinger.de/turntable-ps-2
